The main structure of corrugated vacuum transfer flexo printer machine

The main structure of corrugated vacuum transfer flexo printer machine usually includes the following key parts:

•  Printer Unit

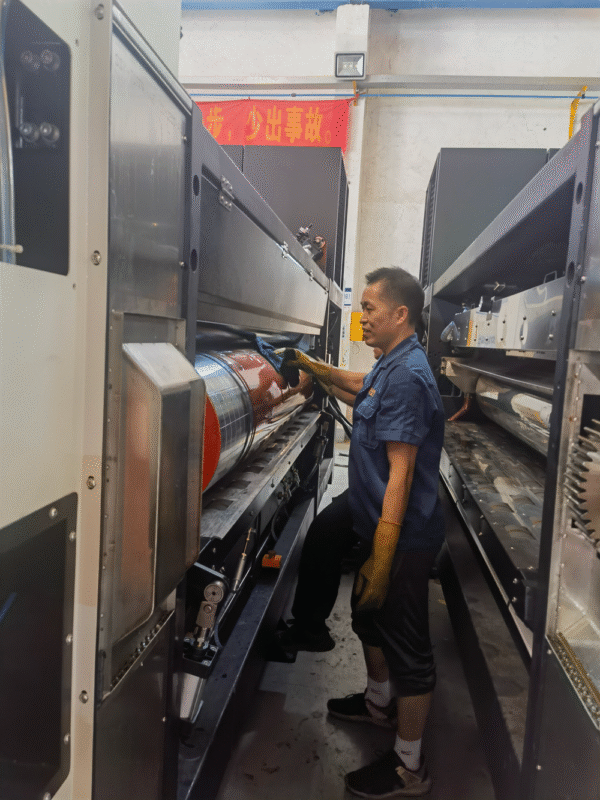

The printer unit is the core part of the corrugated vacuum transfer flexo printer machine, which carries the main function of the whole printing process. The printer unit usually adopts special design to ensure high-precision printing effect. It may include one or more printer units, each of which is equipped with corresponding printing rollers, chamber doctor blade, rubber roller etc., which are used to evenly coat the ink on the printing material.

• The adsorption system

Adsorption system is another important part of the corrugated vacuum transfer flexo printer machine, which is mainly composed of high-performance vacuum pump and adsorption plate (or adsorption device). Vacuum pump by generating negative pressure to adsorb the printing material, to ensure that it remains stable in the printing process. The adsorption plate is usually designed with the vacuum pump connected to the aperture or grain, in order to effectively extract air and form a vacuum environment. When the vacuum pump is working, the aperture or grain on the adsorption plate will adsorb the printing material, so that it closely fits on the printing platform.

• Control System

The control system is the intelligent brain of the corrugated vacuum transfer flexo printer machine, which is responsible for controlling all aspects of the entire printing process. The control system usually adopts advanced data processing technology to achieve high-precision control. It can monitor and adjust the printing speed, printing pressure, ink supply and other parameters in real time to ensure the stability and consistency of printing quality. In addition, the control system can also be automated to reduce manual intervention and improve production efficiency.

• Ink supply system

Ink supply system is a key auxiliary component of corrugated vacuum transfer flexo printer machine, which is responsible for providing stable and appropriate amount of ink supply. The ink supply system usually adopts high-precision ink supply device to ensure the uniformity and stability of ink. It can monitor the ink supply quantity and quality in real time and make adjustments as needed. In addition, the ink supply system can also be equipped with an ink return device to recover and recycle the remaining ink after printing to reduce production costs and environmental pollution.

• The transmission mechanism and positioning device

The transmission mechanism is responsible for transporting the printing material from the feeding area to the printing area and outputting it after printing is completed. It may include feeding unit, drive belt, chain and other components. The positioning device is used to ensure that the printed material is accurately positioned during the printing process. It may use mechanical positioning, photoelectric positioning or laser positioning and other technical means to ensure the accuracy and consistency of the printing position.

• Other auxiliary components

In addition to the above main structure, the corrugated vacuum transfer flexo printer machine may also include a number of other auxiliary components, such as dust removal devices, cleaning devices, safety and security devices. These auxiliary components help to improve the overall performance and safety of the printing machine, reduce production costs and maintenance difficulties.

In summary, the main structure of the corrugated vacuum transfer flexo printer machine includes the printing body, the adsorption system, the control system, the ink supply system, the transmission mechanism and the positioning device, and other auxiliary components. These components work together to achieve high precision and high efficiency of the printing process.
