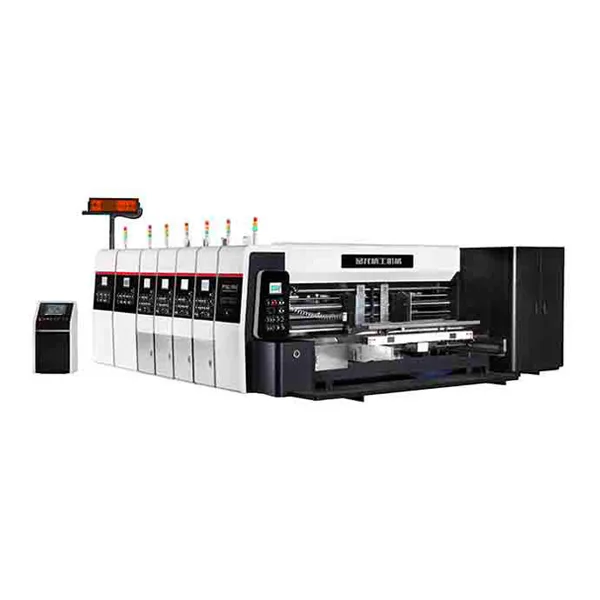

Corrugated Boxes Printing & Manufacturing Machine
Brand Pinlong
Model PL-Y5
Place of Original China
Size (mm) 900 × 2000, 1200 × 2400, 1400 × 2400, 1600 × 2800
Printing for Carton Box, Corrugated Box, Cardboard Box
Color Printing 1 / 2 / 3 / 4 / 5 / 6 / 7 Color
Payment T / T, L / C, D / P
Price Terms FOB, EXW, CIF
Delivery Time Within 60-120 days after receive the deposit
|
PARAMETER |
|||||
|
Description Model |
PL-Y5-0920 |
PL-Y5-1224 |
PL-Y5-1424 |
PL-Y5-1628 |
|
|
Max Speed（Pcs / Min） |
430 |
300 |
250 |
200 |
|
|
Max. Paper Board（L*W）mm |
2100*880 |
2500*1200 |
2500*1450 |
2900*1450 |
|
|
Max. Board Size（L*W）mm |
2100*1200 |
2500*1500 |
2500*1650 |
2900*1850 |
|
|
Min. Paper Board（L*W）mm |
700*280 |
700*320 |
700*380 |
700*380 |
|
|
Max Printing Size（L*W）mm |
2000*880 |
2400*1200 |
2400*1370 |
2400*1570 |
|
|
Print Plate Thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
|
|
Max. Slotting Depth (mm) |
225 Knives Can be added |
270 Knives Can be added |
300 Knives Can be added |
300 Knives Can be added to enlarge slotting depth |
|
|
Min Slotting Gap(mm) |
Positive（mm) |
150*150*150*150 |
170*170*170*170 |
170*170*170*170 |
170*170*170*170 |
|
Inverse（mm) |
230*70*230*70 |
240*70*240*70 |
240*70*240*70 |
240*70*240*70 |
|
|
Die Cutter Blades Height (mm) |
25.4 |
25.4 |
25.4 |
25.4 |
|
Lead Edge Feeder
Imported servo motor feeding system of the corrugated boxes manufacturing machines, precise, fast, stably feeding.
“Zero” impression feed technology, keep boards strength and quality.
The powerful dust suction device of the corrugated box manufacturing machine ensures the perfect cleaning of the board surface.
Pneumatic patting, front and side baffle motorized adjustment. This design is our exclusive patent.

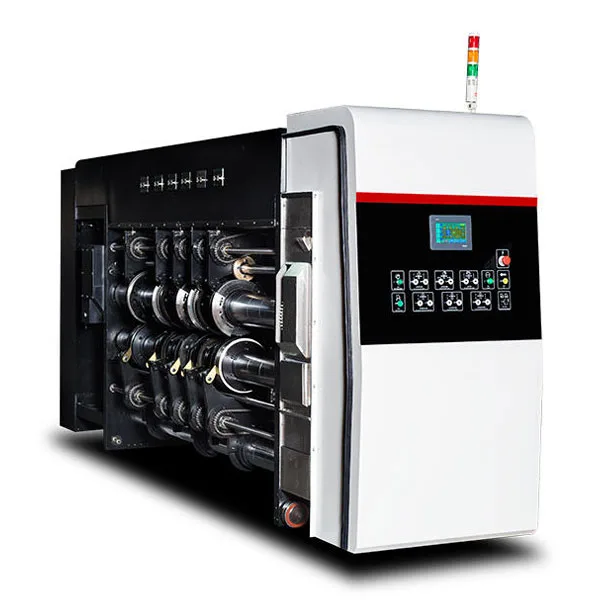

Printing Unit
Servo motor registration, available with interface panel in printer & feeder unit of the corrugated boxes manufacturing machines.
Boards pull wheels fast lock lateral move system. Pressure gap electrical adjust.
The box printing machine has a patent ink supply system, no ink flies fast running.
Slotter Unit
Servo motor system of the corrugated boxes manufacturing machines computerized adjustment, order shafting in seconds.
Middle knife movable variable boxes are available.
Four ball screws with linear guides, linked together for fast and precise adjusting.
Pinlong patent: pre-creaser、first-creaser、second-creaser、slotter. Perfect shape forming (six-axis design available).

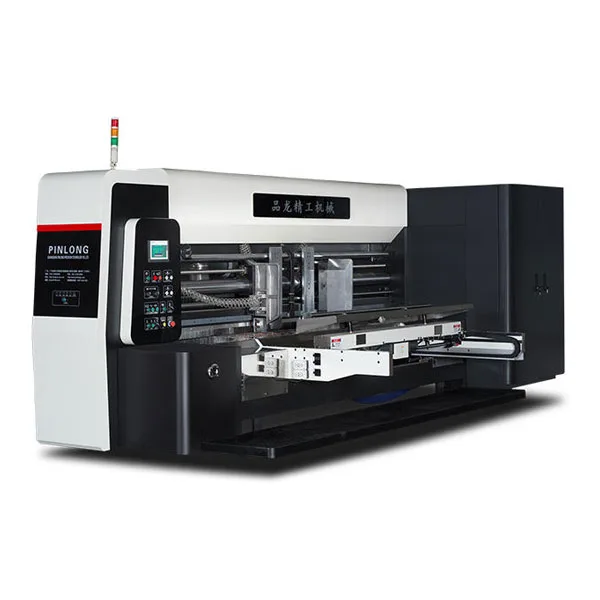

Rotary Die Cutter Unit
Registration can be adjusted with the interface panel in the section’s main operation desk.
fast-changing import anvil cover, import servo motor speed compensation +3mm. Regrinding systems are available for corrugated box manufacturing machines.
Rubber roller lateral move +20mm, longer service life.
